  1. Submit Data

Submit Data with Online Form

This comprehensive tutorial will guide you through the process of creating and submitting a private dataset to ESS-DIVE.

PreviousData Reporting FormatsNextLink to External Data Sources

Last updated 8 months ago

Remember to review the and ensure there is no in your dataset.


Preferred Browsers

  • Chrome

  • Firefox

  • May have some issues with Safari and Internet Explorer

IMPORTANT: The following instructions assume you have been given access to upload data by an ESS-DIVE admin. If you are logging in for the first time, see documentation on how to setup to get access to upload.


Access the Data Submission Web Form

Click the link to the data submission web form:

This link will take you to a sign in screen where you can use your ORCID credentials to sign in (Figure 1).

is a test ESS-DIVE system where you can play around with the upload process. Any data that you submit to the test system is temporary, and will not be preserved in ESS-DIVE.

Troubleshooting login issues

Alternatively, if you are on the home page (Figure 2), click on the “Sign in with Orcid” button in the top right corner.

Instructions to Create a New Dataset

  1. Add your files in the top section to start your dataset submission.

  2. Enter all the fields in the various tabs (Figure 4). You only need to fill in required fields (marked with a *) to submit a record, but we recommend that you fill as many of the fields as possible so users can more easily locate your dataset, and understand what it contains.

1. Overview

2. People

3. Dates

4. Locations

5. Methods

Submit the Dataset

VIEW YOUR SUBMISSION

Instructions to Edit an Existing Dataset

Click on the Edit Button, on your dataset View (Figure 13). This will take you to the form where you previously entered your metadata and uploaded data files.

If you are having issues logging in to ESS-DIVE, please review our . Contact ess-dive-support@lbl.gov if problems persist.

Once you click on the “Sign in with ORCID” button, the system will redirect you to a login screen (Figure 3). Login with your ORCID credentials. You can also link your ORCID with your institutional account if you prefer to login that way. If you do not have an ORCID account, visit .

Once you are logged in, click on the green “Submit Data” button next to the “Sign in” button. If the button is disabled, it means your email address needs to be added to your profile found "My Settings." See the documentation.

To review the expectations for content in sections 1-5, refer to our .

When complete, hit the submit button at the bottom of your screen (Figure 10). This will save the record as a private dataset. Notify when you are done with your submission.

If your submission is successful, you will see a confirmation message (Figure 11). Click on the I'm Done button, and verify that your dataset details are entered correctly (Figure 12). If you run into any problems, send an email to , with the error message you received.

login troubleshooting tips
Package Level Metadata Guide
ess-dive-support@lbl.gov
ess-dive-support@lbl.gov
⚠️
💡
ESS-DIVE terms of use
Protected Information
your account
https://data.ess-dive.lbl.gov
https://data-sandbox.ess-dive.lbl.gov
Creating an ORCID
Account Settings
Figure 1. Sign in page for data uploads
Figure 2. ESS-DIVE Data portal home screen.
Figure 3. ORCID Default login page.
Figure 4. Section to add files
Figure 5. Overview Section
Figure 6. People Section
Figure 7. Dates Section

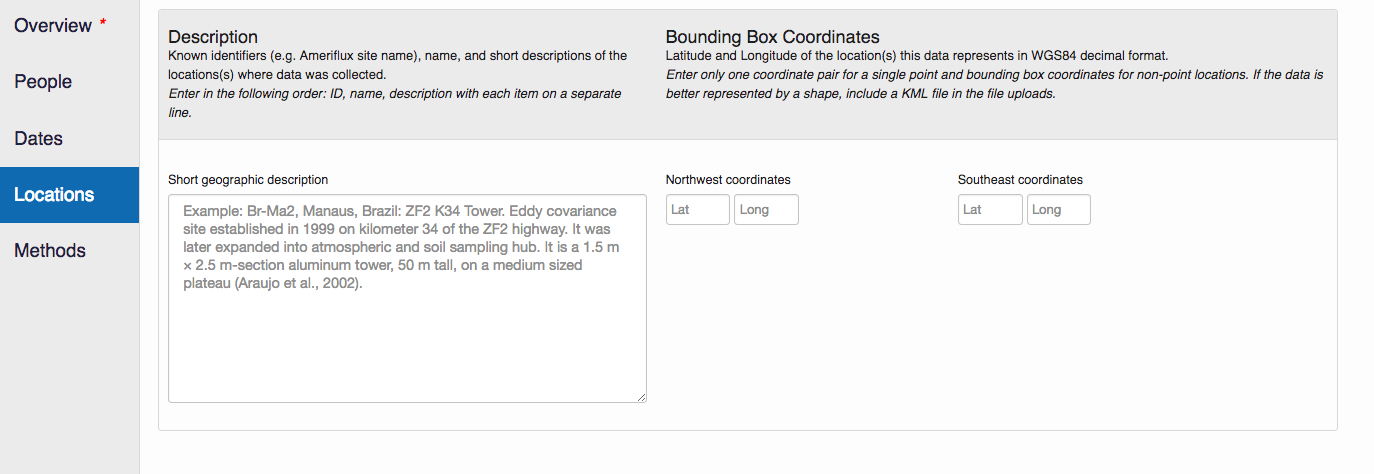

Figure 8. Locations Section

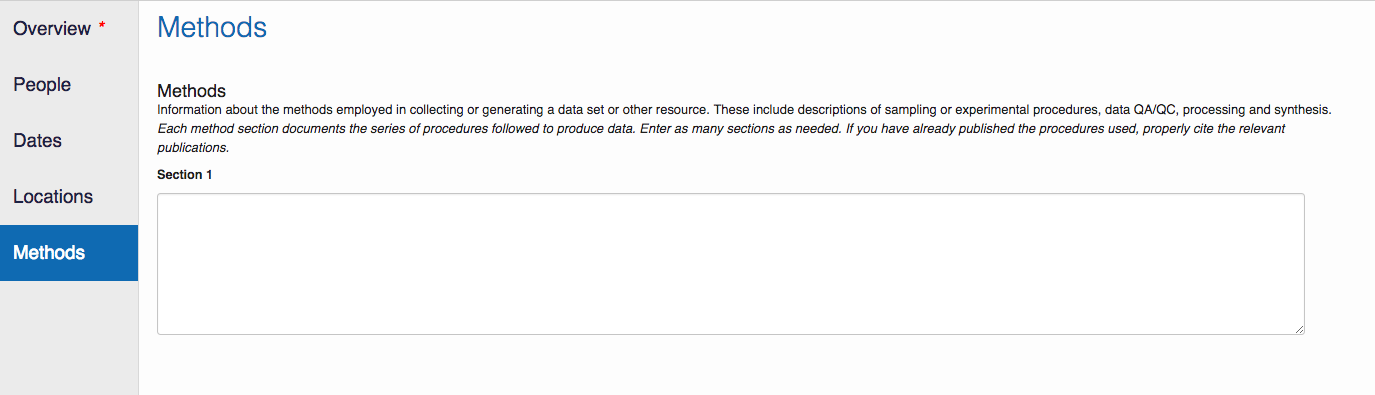

Figure 9. Methods Section

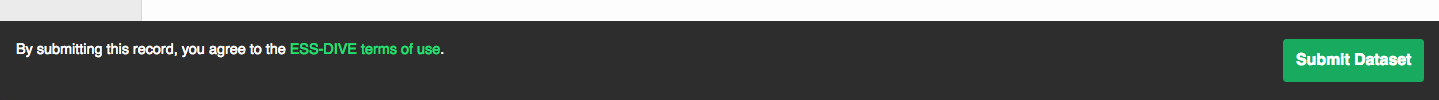

Figure 10. Submit Button
Figure 11. A Successful Submission Message
Figure 12. Dataset Landing Page
Figure 13. Submission Form
